How to configure your splash page to authenticate guests onto your Grandstream GWN series access point.

With Grandstream, guests are sent to the Fydelia server and the redirect includes all Grandstream parameters required by Fydelia.  Only the RADIUS user details are required on the Fydelia side.

Preparation

You will need:

• Admin access to your Grandstream https://www.gdms.cloud/gwn administration panel
• Access to your Fydelia account
• The full URL of your splash page from Fydelia

Creating the RADIUS server entries

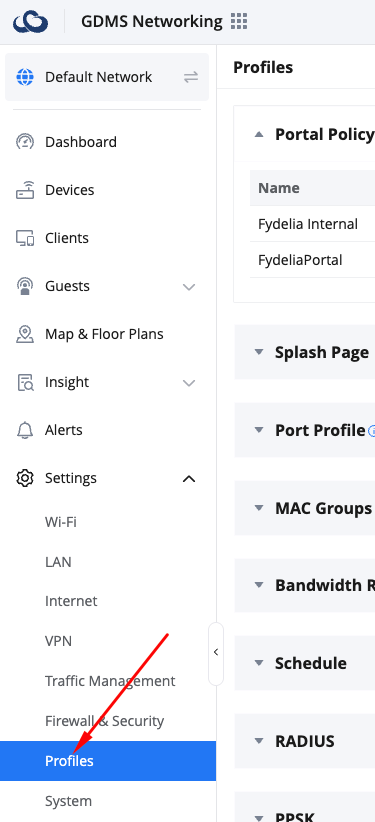

1. Under settings, click Profiles:

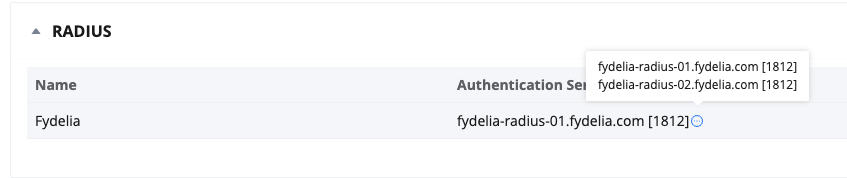

Add Primary and Secondary RADIUS details:

Details:

• Servers:
  • fydelia-radius-01.fydelia.com
  • fydelia-radius-02.fydelia.com
• Port: 1812
• Secret: Contact Fydelia support

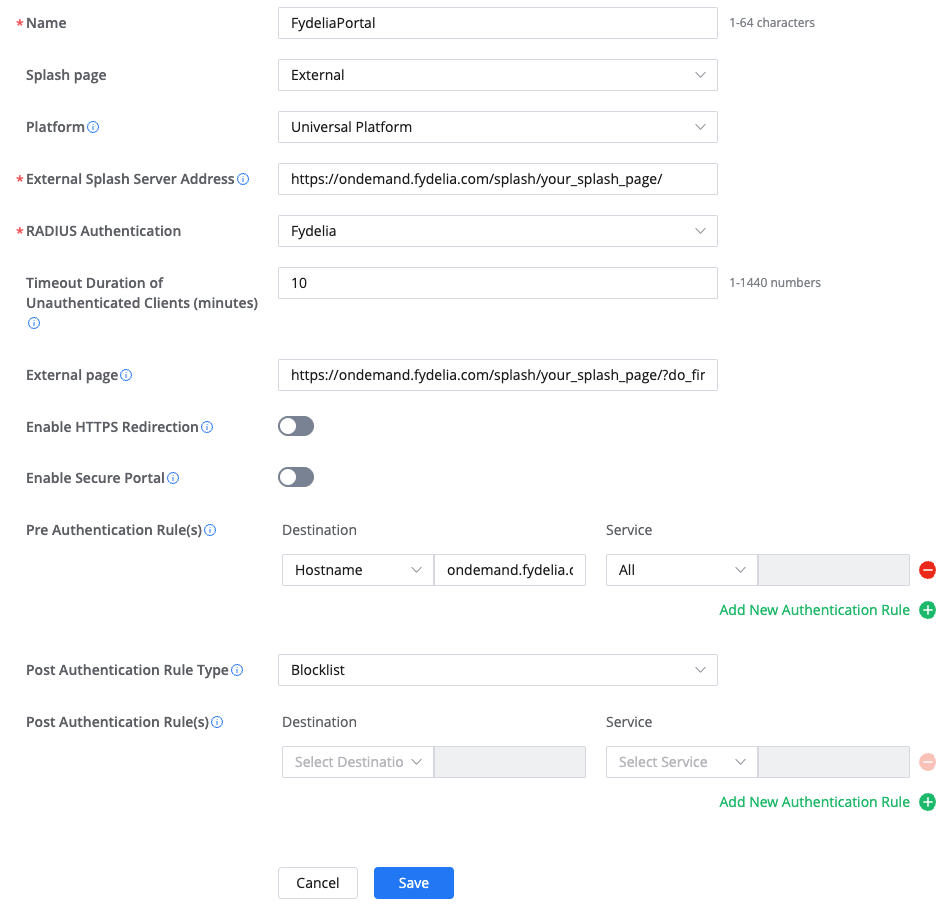

Adding the captive portal

Under settings, click profile

Under splash page click ADD NEW

Add your splash page details as follows:

Ensure that Pre Authentication rules has: ondemand.fydelia.com

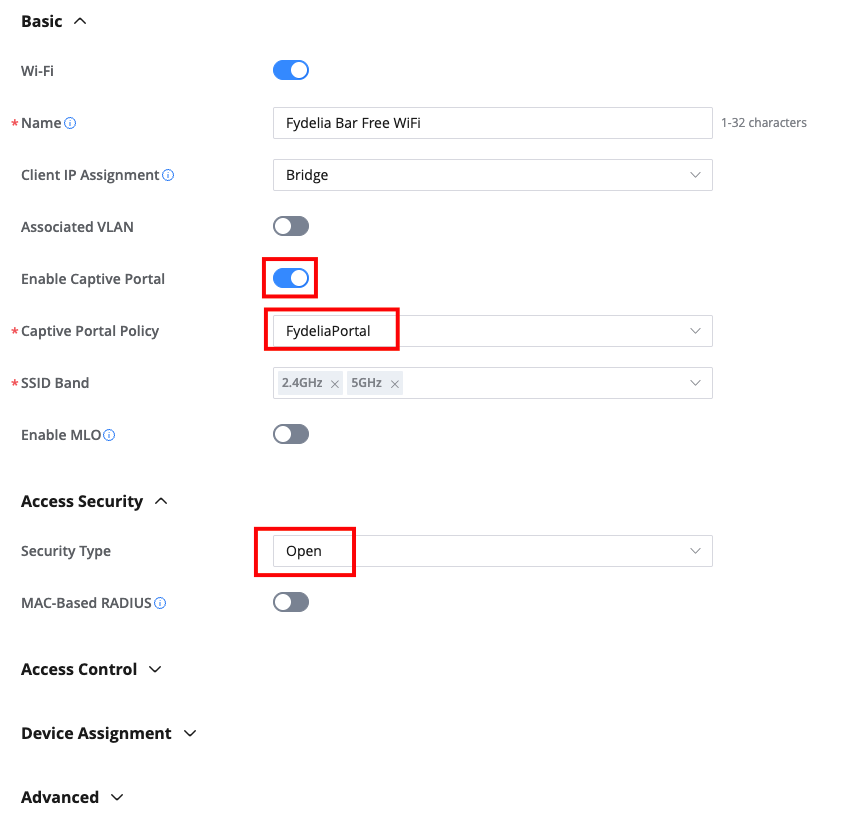

Enabling the portal on your SSID

Under settings, click profile

Choose your SSID and edit

Enter these settings:

Provision the changes to your access points if you have it set to manual provisioning

Your guests will now be redirected to your splash page in Fydelia
